Imprint – Echo
NOTE: The Acoustic Panels team will always send over a print proof before printing. Simply choose your size and upload your image.
£ 81.56
FEEL THE DIFFERENCE

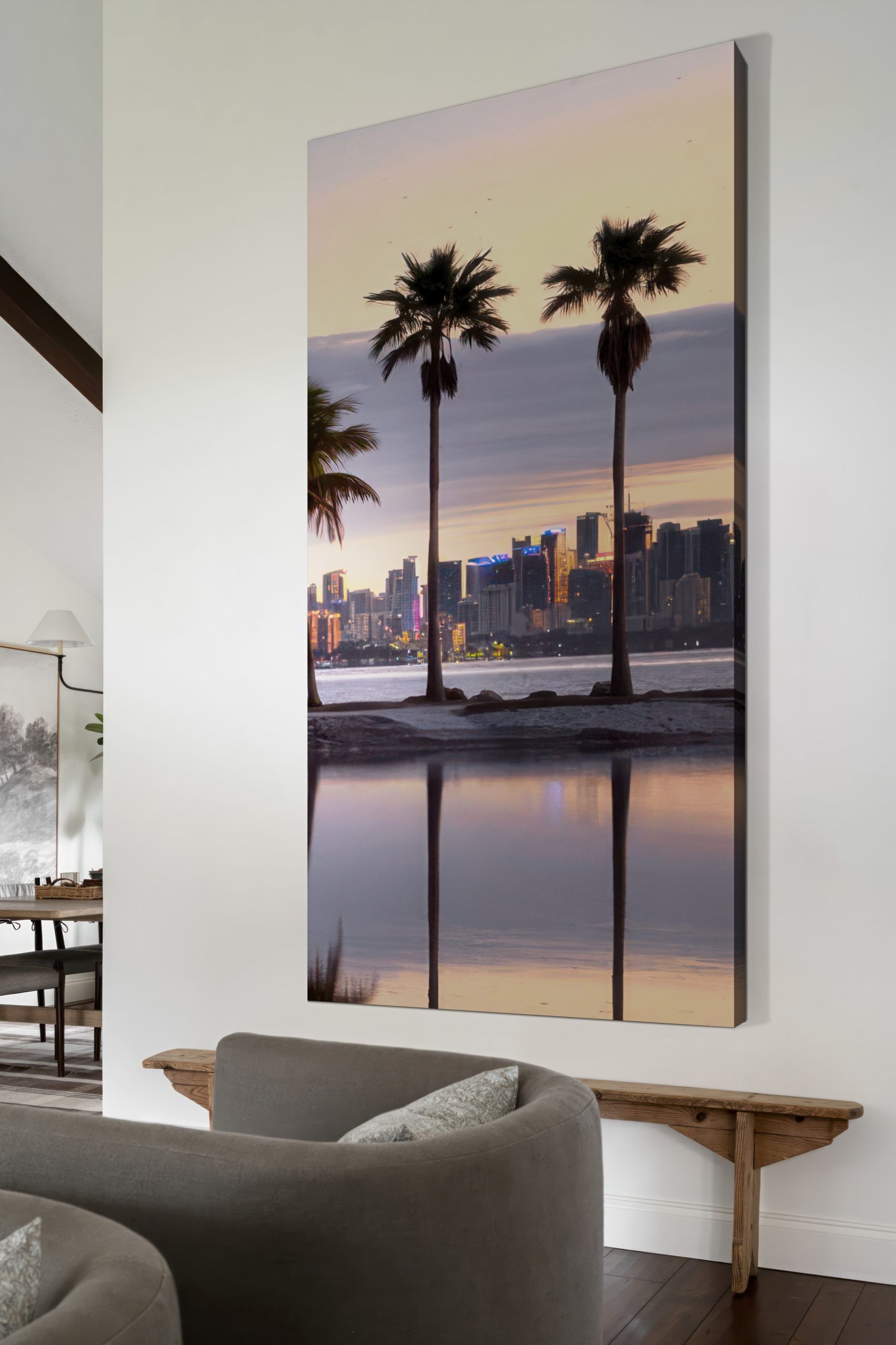

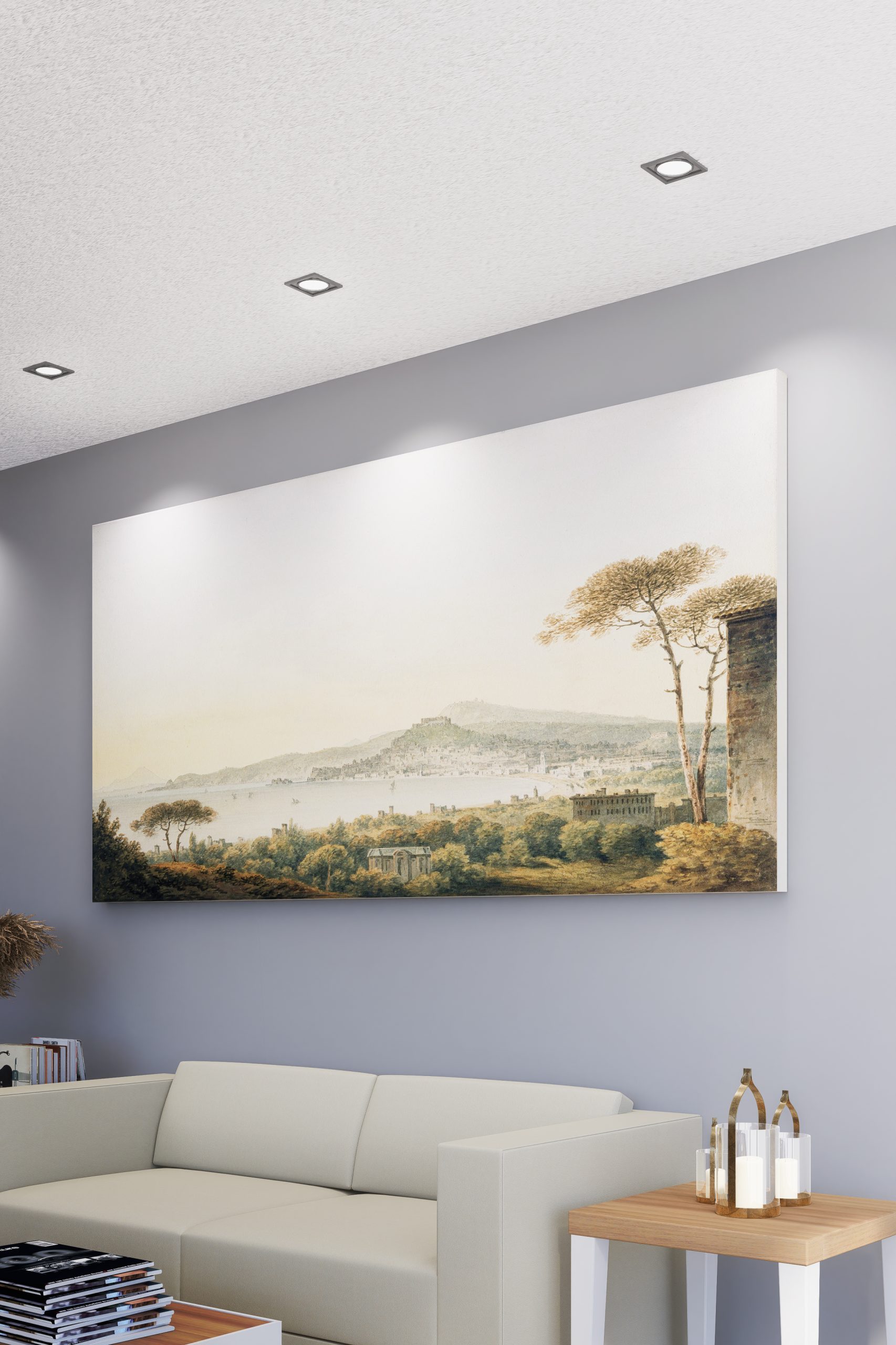

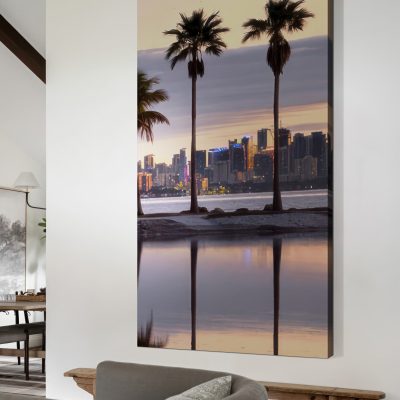

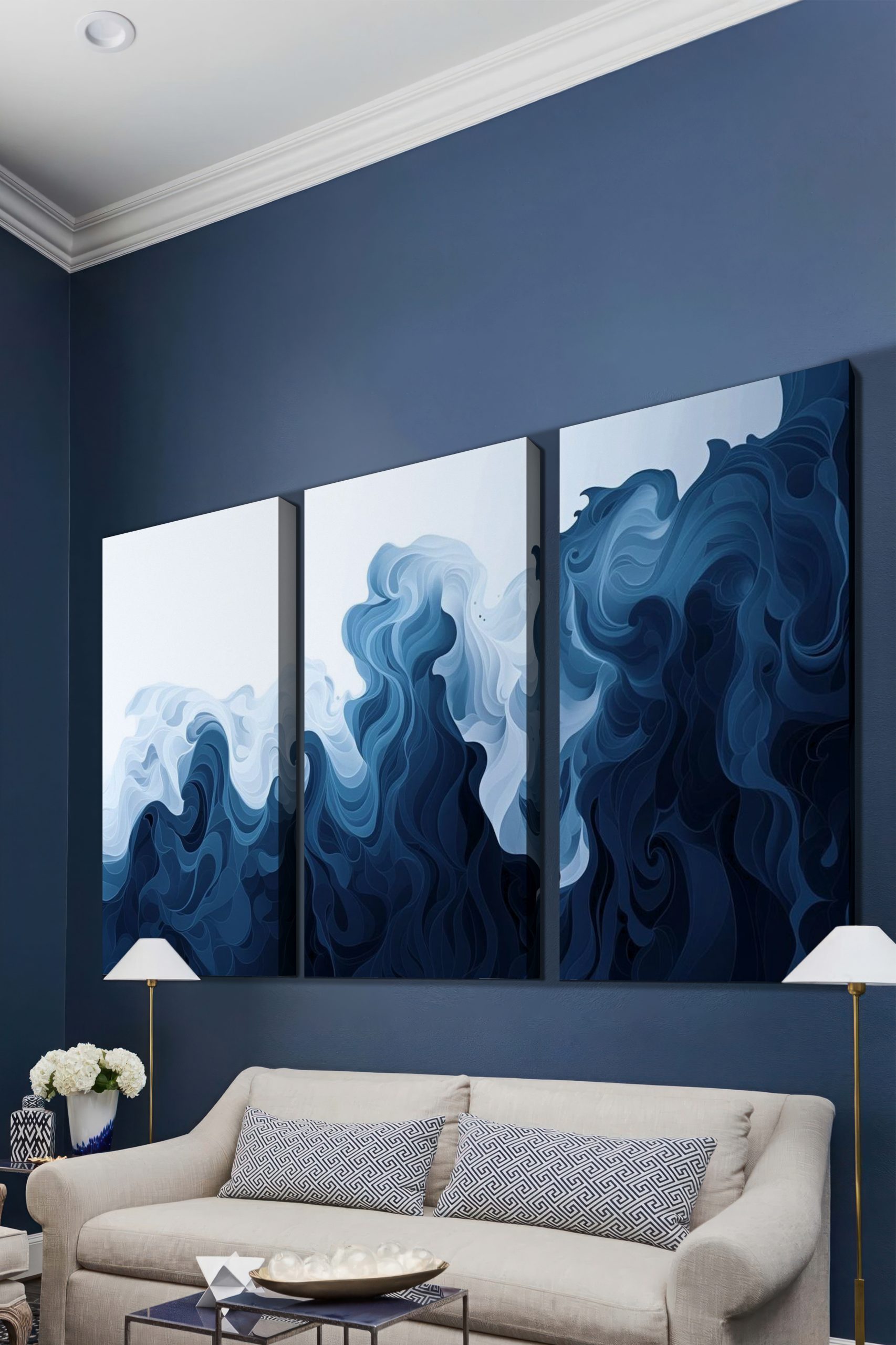

Echo Imprint is a premium Class A acoustic artwork solution featuring a self-adhesive backing for quick, effortless installation. Designed to elevate both visual and acoustic performance, it enhances brand presence, encourages creativity, and supports user well-being across a variety of spaces. Artwork can be printed onto individual panels or seamlessly extended across multiple panels to maximise wall coverage and impact.
Perfect for breaking the boundaries of traditional design, Echo Imprint transforms standard acoustic panels into fully bespoke creations—making it the ideal solution for your most imaginative and expressive interior concepts.
View Product Data Sheet
Hear the Difference:
Frequently Asked Questions
What is this product made from?
Imprint panels are made from your choice of Alpha (PET fibre), Echo (melamine foam), or Ambiance (glass wool) acoustic cores.
Each variant provides excellent sound absorption and is finished with UV flatbed printed designs or fabric wraps for a creative acoustic wall treatment.
What sizes and thicknesses are available?
- Alpha Imprint: 2800 × 1200mm, 12mm or 24mm thick
- Echo Imprint: 2400 × 1200mm, 50mm thick
- Ambiance Imprint: 2400 × 1200mm, 40mm thick
What is the acoustic performance?
- Alpha Imprint: Class D absorber (NRC 0.45–0.65)
- Echo Imprint: Class A absorber (NRC up to 1.00)
- Ambiance Imprint: Class A absorber (NRC 0.95)
All variants are tested to ISO 354 / ISO 11654 / ASTM C423-17 acoustic standards.
What is the fire performance?
Fire Performance
Acoustic panels using a Basotect™ G+ melamine foam core are supplied as composite products, consisting of a Basotect™ acoustic core combined with a fabric finish.
Core Material Fire Rating (EN 13501-1)
The reaction-to-fire performance of Basotect™ G+ depends on the material thickness.
Independent testing to EN 13501-1 confirms the following classifications:
5–15 mm: B-s1, d0
16–20 mm: C-s2, d0
21–80 mm: C-s2, d0
81–200 mm: C-s3, d0
This indicates controlled fire behaviour, with no flaming droplets (d0) across all tested thicknesses.
(Test reports are available on request.)
Fabric Fire Ratings
A range of fire-rated acoustic fabrics is available.
As standard, fabrics supplied meet a minimum Class B fire rating, with alternative fire-rated fabrics available on request.
Fabric fire test certification can be provided upon request.
Composite System – Important Information
The complete composite system (core + fabric) is not fire tested as standard, and no declared EN 13501-1 classification is claimed for the assembled product.
As with most acoustic composite products, the final reaction-to-fire performance depends on the core thickness, fabric type, adhesive system, fixing method, substrate, and air gap, and may differ from the individual component ratings.
Where a declared reaction-to-fire classification is required, testing of the complete composite system can be arranged on request, subject to scope, lead time, and cost.
How is Imprint installed?
Panels can be installed via Soudal Fix All (High Tack) adhesive, impaling pins, or self-adhesive backing, depending on the chosen substrate and wall finish.
Applications / Best Suited Environments
Imprint is ideal for offices, schools, reception areas, creative studios, and branded interiors. It’s the perfect solution where both visual design and acoustic performance are priorities — such as feature walls, signage, or art installations.
Delivery, Shipping & Warranty
Standard production lead time is 10–12 working days, with faster options available subject to scheduling.
Panels are pallet-shipped for maximum protection.
A 1-year manufacturer’s warranty covers defects in materials and workmanship.
